Head-Mount Transmitter Modules

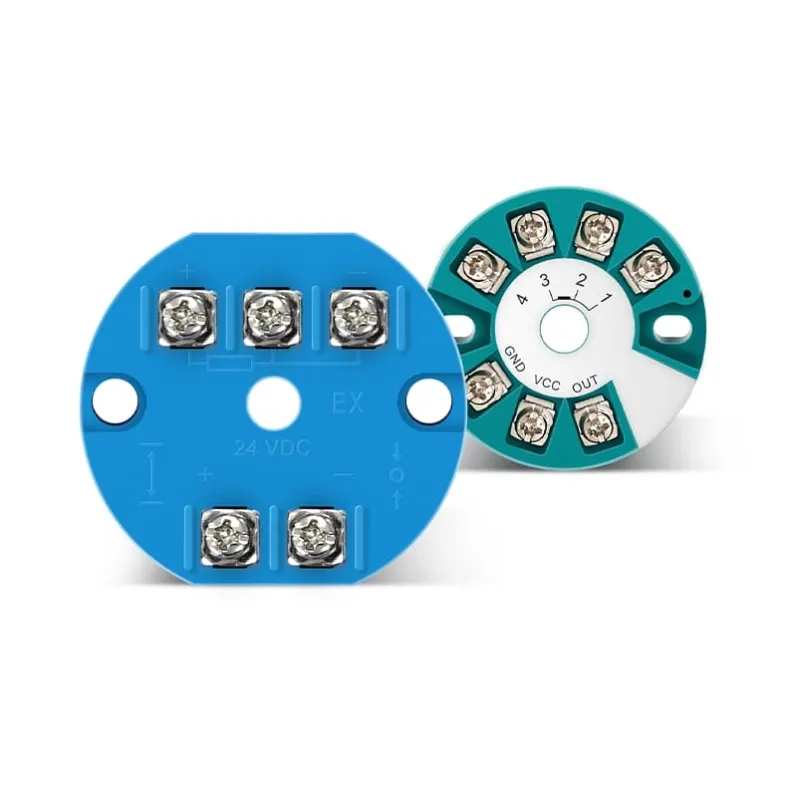

HRT-TM180 Temperature Transmitter Module
Temperature transmitter module for converting RTD or thermocouple signals into standard analog or digital outputs for industrial control systems.
Specifications
- Measuring Range
- Depends on PT100 / PT1000 / thermocouple input
- Sensor Type
- PT100 / PT1000; thermocouple options
- Accuracy
- 0.2 / 0.5 class options in source sheet
- Output
- 4–20 mA / RS485 / 0–5 V / 0–10 V
- Power Supply
- 9–30 VDC
- Process Connection
- Module / panel integration
- Probe Material
- External sensor dependent
- Ingress Protection
- Depends on final enclosure
Product Overview
HRT-TM180 converts temperature-sensor signals into standard industrial outputs for PLCs, controllers, indicators and data-acquisition systems. It can be used with common RTD inputs and selected thermocouple configurations.
Applications
Typical uses include control panels, equipment temperature monitoring, machinery, heating systems and process instrumentation where a sensor signal needs to be converted for the control system.
Selection & Application
Confirm the sensor type, measuring range, wiring method, required output, power supply and installation format before selection.
Installation & Integration
Observe the input wiring method and output/load requirements. Keep sensor wiring away from strong interference sources where practical.
Configuration Options
Input type, output and module format can be selected according to the control-system requirement.
Next Step
For selection or quotation, please send the temperature range, sensor type, process conditions, installation dimensions and required output.
