Process Temperature Transmitters

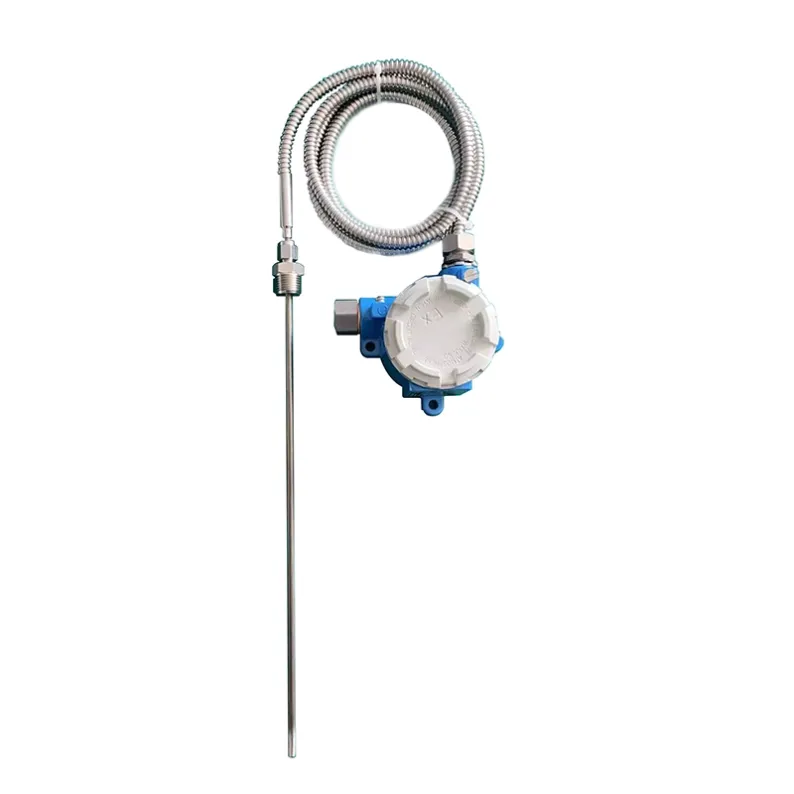

HRT-T300 Standard Integrated Temperature Transmitter
Integrated temperature-transmitter family without a required local display. Confirm sensing element, probe length/construction, connection, output, enclosure and operating conditions.
Specifications
- Sensor Elements
- RTD: Pt100, Pt1000; TC: Type K, T, E, S, B
- Measuring Range
- RTD: -200°C to +600°C; TC: -40°C to +1200°C
- Accuracy Class
- Class A (±0.15°C); Class B (±0.3°C)
- Signal Output
- 4-20 mA / HART™; Optional 0-5V, 0-10V, RS485 Modbus
- Wiring Config
- 2-wire, 3-wire, or 4-wire (Bespoke)
- Process Connection
- Thread (M20/G1/2/NPT) or Flange (Customizable)
- Protection Rating
- IP66 / IP68 (Depending on configuration)
- Customization
- Probe diameter, insertion depth, and extensions
What this product is
Integrated temperature-transmitter family without a required local display. Confirm sensing element, probe length/construction, connection, output, enclosure and operating conditions.
Application fit
This temperature or environmental product can be reviewed for process, equipment, HVAC or ambient monitoring when the sensing element, range, placement and interface suit the measurement point.
Selection information required
- Measured variable, sensor or input type and required range.
- Probe, lead, insertion, surface or ambient placement requirements.
- Process connection, output, power, display and enclosure requirements.
- Condensation, humidity, airflow, contamination, calibration and maintenance conditions.
Installation and integration
Review sensing position, insertion or surface contact, local heat sources, condensation, cable routing, grounding and access for verification. Confirm the selected sensor, transmitter and control-system scaling as one measurement chain.
Verified specifications
Use only specifications confirmed for the exact model and ordered configuration. Unverified numerical ranges, accuracy, materials, protection ratings, certifications, protocols and performance claims are intentionally not stated here.
Limitations and review conditions
Product names or family labels do not by themselves prove hazardous-area approval, waterproofing, corrosion resistance, hygienic suitability, wireless capability or compatibility with a particular medium or control system. Check the exact documentation and configuration before selection.
Next step
Contact our technical team with the medium, range, process conditions, connection, output and installation details to request a configuration review.
