Specialized Measurement

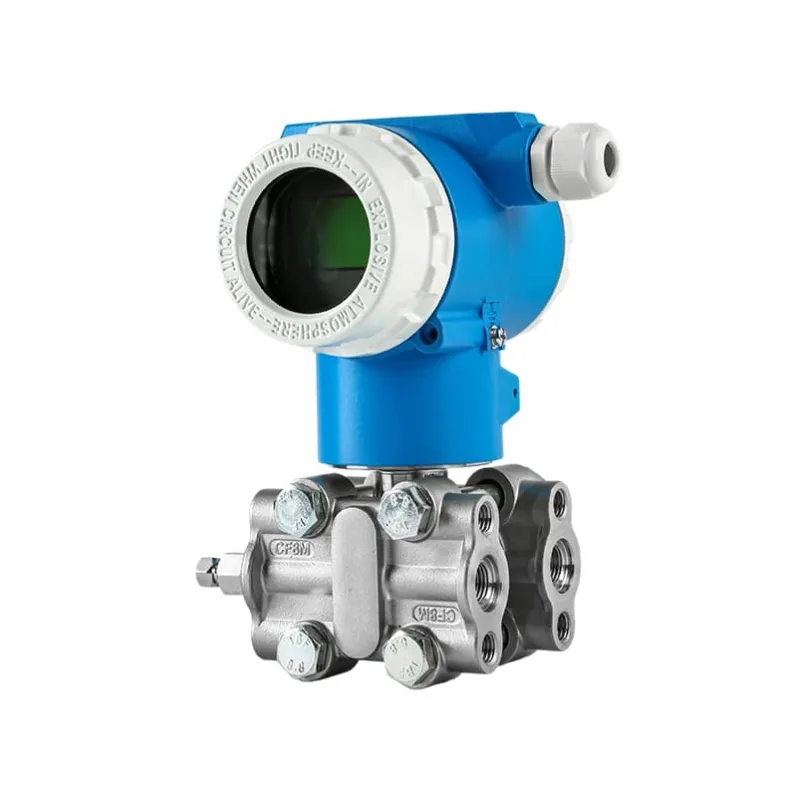

HRT-P750D Industrial Differential Pressure Transmitter
Precise DP sensing for flow, level, and filter monitoring. Supports -0.1 to 10MPa with optional display. Ideal for pressurized tanks and automated process optimization.
Specifications
- Measuring Range
- -0.1 to 10 MPa (Selectable within range)
- Output Signal
- 4-20 mA (Standard); Optional 1-5V, HART Protocol, RS485
- Media Compatibility
- Liquid, Gas, and Steam
- Reference Accuracy
- ±0.5% FS (Standard)
- Annual Stability
- ≤ ±0.5% FS / Year
- Power Supply
- 24V DC
- Temperature Range
- -20°C to +75°C
- Process Connection
- Customizable; Optional Wall-mounting Bracket, 3-Valve Manifold, and Drain Valves
- Ingress Protection
- IP65
- Customization
- Bespoke engineering for specific industrial applications
The HRT-P750D measures differential pressure in liquid, gas, and steam from -0.1 to 10MPa. Engineered for long-term stability, it supports customizable range ratios and optional local displays, providing precise data to optimize industrial line performance and maintain cost-effective operations.
This series excels in flow metering when paired with orifice plates or balanced flowmeters. It is also critical for filter maintenance by monitoring pressure drops. For pressurized tanks or reactors, the P750D accurately determines liquid levels by neutralizing back pressure, ensuring seamless operational integrity.
