Application Specific

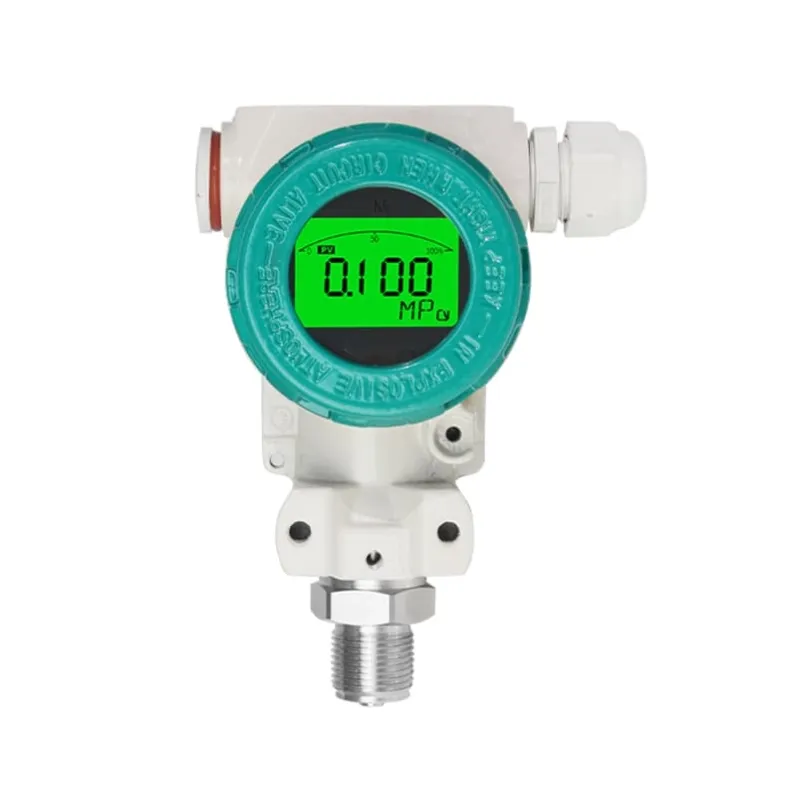

HRT-P2088CD Industrial Pressure Transmitter with LCD Display
High-visibility LCD pressure sensor with rugged 2088 housing. Real-time on-site monitoring for petrochemical and process industrial zones. ±0.5% accuracy.
Specifications
- Product Type
- Industrial Pressure Transmitter
- Measuring Range
- -0.1 MPa ... 0 to 100 MPa (Custom scaling available)
- Pressure Reference
- Gauge (G), Absolute (A), Sealed Gauge (S)
- Accuracy Class
- ±0.5% FS (Standard); ±0.2%, ±0.1%, ±0.075% FS (Optional)
- Wetted Material
- 316L Stainless Steel isolated diaphragm structure
- Overload Pressure
- 200% Full Scale (FS)
- Output Signal
- 4-20 mA (2-wire); RS485 (Modbus RTU); 0-5 V / 0-10 V
- Electrical Connection
- M20×1.5 / Aviation Plug
- Power Supply
- 24V DC ± 20%
- Process Connection
- M20×1.5 (Default); G1/2, NPT1/2 Male (Optional)
- Explosion-Proof
- Intrinsically Safe (Ex ia)
- Ingress Protection
- IP65
- Operating Temp
- -10°C to +80°C
- Ambient Humidity
- 0 to 80% RH
- Thermal Drift
- ±0.02% FS / °C
- Customization
- Bespoke engineering for specific industrial applications
The HRT-P2088CD features a high-definition LCD for immediate on-site data reading, housed in a durable explosion-proof enclosure. It is specifically designed to enhance operational transparency in complex industrial tank farms and boiler systems.
This series is highly effective in wastewater treatment and pulp production, where local visibility is critical. Its precision circuitry provides consistent 4-20mA/RS485 output, ensuring seamless data flow to both personnel and control centers.
