Application Specific

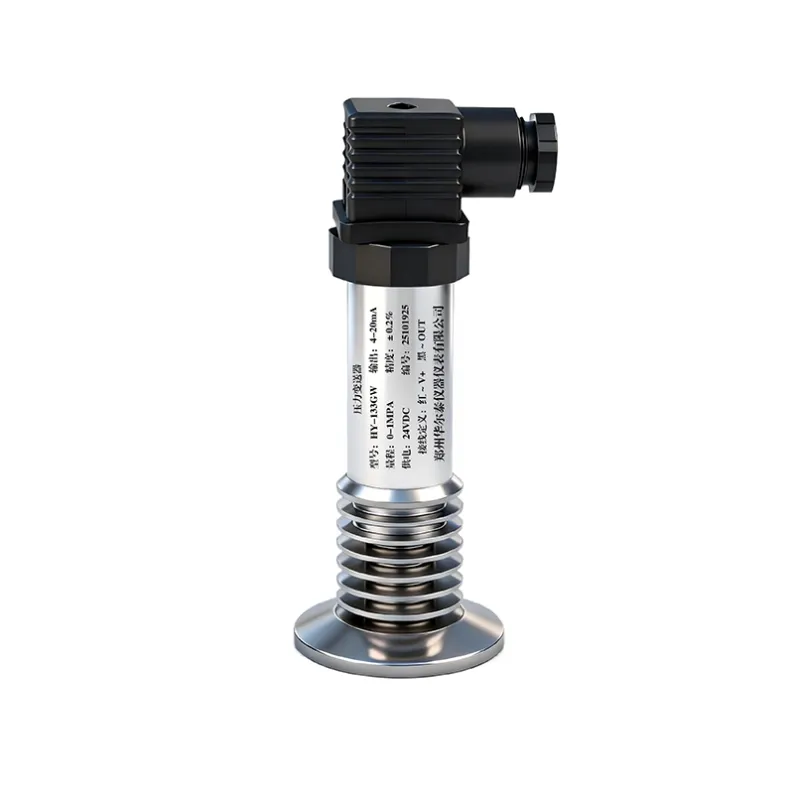

HRT-P135HT High-Temp Hygienic Pressure Transmitter
Combines sanitary tri-clamp design with high-temp tolerance. Perfect for pasteurization and hot CIP processes.
Specifications
- Measuring Range
- -0.1 MPa ... 0 to 100 MPa (Customizable scaling within range)
- Pressure Reference
- Gauge (G), Absolute (A), Sealed Gauge (S)
- Accuracy Class
- ±0.5% FS (Standard); Optional ±0.2%, ±0.1%, ±0.075% FS
- Wetted Material
- 316L Stainless Steel isolated diaphragm structure
- Overload Pressure
- 200% Full Scale (FS)
- Output Signal
- 4-20 mA (2-wire); RS485 (Modbus RTU); 0-5 V / 0-10 V
- Electrical Connection
- Hirschmann (2/3-wire), Direct Cable Lead, or Aviation Plug
- Power Supply
- 24V DC ± 20%
- Process Connection
- M20×1.5 (Default); G1/2, NPT1/2 Male; Sanitary Tri-clamp (1.5", 2" or bespoke sizes)
- Explosion-Proof
- Intrinsically Safe (Ex ia)
- Protection Rating
- IP65
- Ambient Temp
- -10°C to +80°C
- Ambient Humidity
- 0 to 80% RH
- Thermal Drift
- ±0.02% FS / °C
- Technical Note
- Bespoke engineering available for non-standard requirements. Please consult our technical team for application vetting.
The HRT-P135HT integrates high-temperature resilience with a sanitary flush-diaphragm design. It is specifically built for hot hygienic processes like pasteurization or steam cleaning. Utilizing 316L stainless steel and a tri-clamp interface, it delivers stable pressure monitoring while upholding strict purity and safety standards in food and pharmaceutical plants.
