Industrial Pressure Transmitters

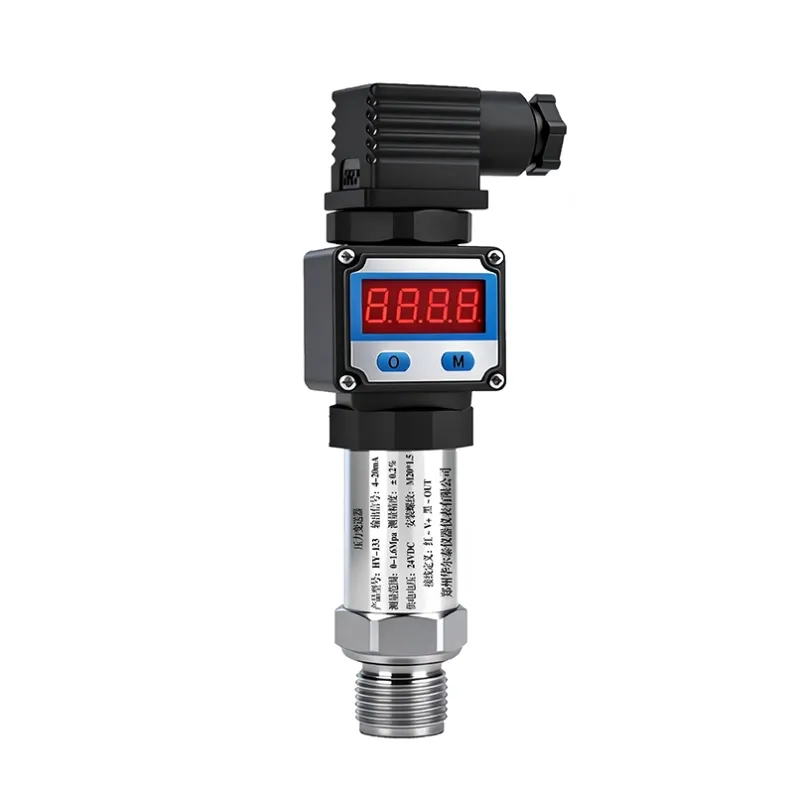

HRT-P133ED Pressure Transmitter with LED Display
Compact pressure transmitter with an available LED display for local reading where the display type suits the installation. Confirm range, medium, connections, output and environmental exposure.
Specifications
- Measuring Range
- -0.1 MPa ... 0 to 100 MPa (Customizable scaling within range)
- Pressure Reference
- Gauge (G), Absolute (A), Sealed Gauge (S)
- Accuracy Class
- ±0.5% FS (Standard); Optional ±0.2%, ±0.1%, ±0.075% FS
- Wetted Material
- 316L Stainless Steel isolated diaphragm structure
- Overload Pressure
- 200% Full Scale (FS)
- Output Signal
- 4-20 mA (2-wire); RS485 (Modbus RTU); 0-5 V / 0-10 V
- Electrical Connection
- Hirschmann (2/3-wire), Direct Cable Lead, or Aviation Plug
- Power Supply
- 24V DC ± 20%
- Process Connection
- M20×1.5 (Default); G1/2, NPT1/2 Male thread (Optional)
- Explosion-Proof
- Intrinsically Safe (Ex ia)
- Ingress Protection
- IP65
- Ambient Temp
- -10°C to +80°C
- Ambient Humidity
- 0 to 80% RH
- Thermal Drift
- ±0.02% FS / °C
- Technical Note
- Bespoke engineering available for non-standard requirements. Please consult our technical team for application vetting.
What this product is
Compact pressure transmitter with an available LED display for local reading where the display type suits the installation. Confirm range, medium, connections, output and environmental exposure.
Application fit
This pressure product can be reviewed for process, equipment or monitoring duties when the pressure reference, medium, range and installation match the selected configuration.
Selection information required
- Measured medium and pressure reference.
- Normal range, maximum conditions, surge, pulsation or vacuum exposure.
- Process temperature, process connection and wetted compatibility.
- Output, power, electrical connection, display and installation requirements.
Installation and integration
Review mounting orientation, impulse or pressure connection, vibration, temperature transfer, cable entry, grounding, environmental sealing and maintenance access. Confirm scaling, units and control-system input before commissioning.
Verified specifications
Use only specifications confirmed for the exact model and ordered configuration. Unverified numerical ranges, accuracy, materials, protection ratings, certifications, protocols and performance claims are intentionally not stated here.
Limitations and review conditions
Product names or family labels do not by themselves prove hazardous-area approval, waterproofing, corrosion resistance, hygienic suitability, wireless capability or compatibility with a particular medium or control system. Check the exact documentation and configuration before selection.
Next step
Contact our technical team with the medium, range, process conditions, connection, output and installation details to request a configuration review.
